Link A Loom Medium (2LA)

2.5 m long 'A' loom to suit G4, G4+ and G4X ECUs

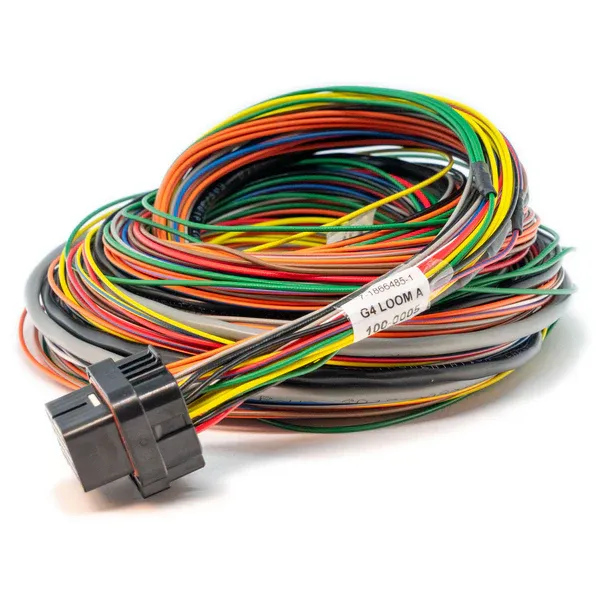

Perfect for all custom wiring jobs utilising Link WireIn ECUs. The ‘A’ Loom has a Link ‘A’ ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual. This loom is also available in 0.4m and 5m lengths.

The Link looms use 0.75mm2 wire for the 2 red wires (pin A5 & B5) and the 4 black power grounds (A25,A34,B25,B34). All other wires are 0.5mm2.

Added features of 2.5m and 5m ‘A’ Looms include:
-Shielded Dual Core wires for trigger signals
-Added ground and 5V wires spliced in with labels suggesting pin use

Suitable for:

• All Link G4X WireIn ECU’s (Note: Loom B will also be required for the Storm/Fury/Xtreme)
• Link G4+ Thunder (Note: Loom B and connector kits C and D may also be required)
• Link G4+ Atom (NB: Does NOT suit the earlier G4 Atom models. I.e. G4+ only)
• Link G4+ Atom II
• Link G4+ Monsoon
• Link G4 Storm
• Link G4+ Storm Blue
• Link G4+ Storm Black (Note: Loom B will also be required)
• Link G4 RX
• Link G4+ Fury (Note: Loom B will also be required)
• Link G4 Xtreme (Note: Loom B will also be required)
• Link G4+ Xtreme (Note: Loom B will also be required)
• Vipec V44
• Vipec i44
• Vipec V88 (Note: Loom B will also be required)
• Vipec i88 (Note: Loom B will also be required)
